ULM Calibration Bench Labconcept Nano

A new reference in matter of dimensional metrology. The unique combination of an ultra accurate measuring system and the motorization of XYZ axes make it the most performing calibration system on the market.

The Labconcept Nano is a new ULM reference in the field of dimensional metrology. It integrates 50 years of knowledge and continuous improvement. It is a remarkable instrument for all measuring tasks that require extremely high accuracy.

The uncompromising design of the Labconcept Nano offers an ideal and performing platform for checking and calibration of all kinds of gauges and measuring instruments. Checking of internal and external dimensions will be done as a fully automatic procedure by the three motorized axes XYZ and the legendary simplicity of use of Trimos WinDHI software.

The Labconcept Nano universal length measuring instrument is completely designed and manufactured in Switzerland according to the highest quality standards. Robustness, reliability and longevity are our traditional values.

The Labconcept Nano combines tradition, experience and a strong technological lead. It integrates the latest measuring and motorisation technologies and can be considered as the first “full digital” calibration instrument. A regular PC controls all electronic components. This low-power solution avoids heating and keeps the energy, maintenance and repair costs at a reasonable level. The linear bearings used in all guideways have proven their superiority over all other technologies in terms of precision, wear, rigidity, temperature stability, reliability, dust protection and maintenance. They ensure exceptional repeatability and precision through time.

  • Unequalled level of accuracy
  • Exceptional repeatability
  • Motorized CNC axes X, Y and Z
  • Selection of displacement speed by software
  • Measuring force (0-12 N) and locking of measuring anvil performed by software
  • Integrated temperature compensation system
  • Absolute measuring range on all models: 350 mm
  • Application ranges: 350, 600 and 1100 mm
  • Measuring of parts up to 60 kg
  • 2 screens in standard package

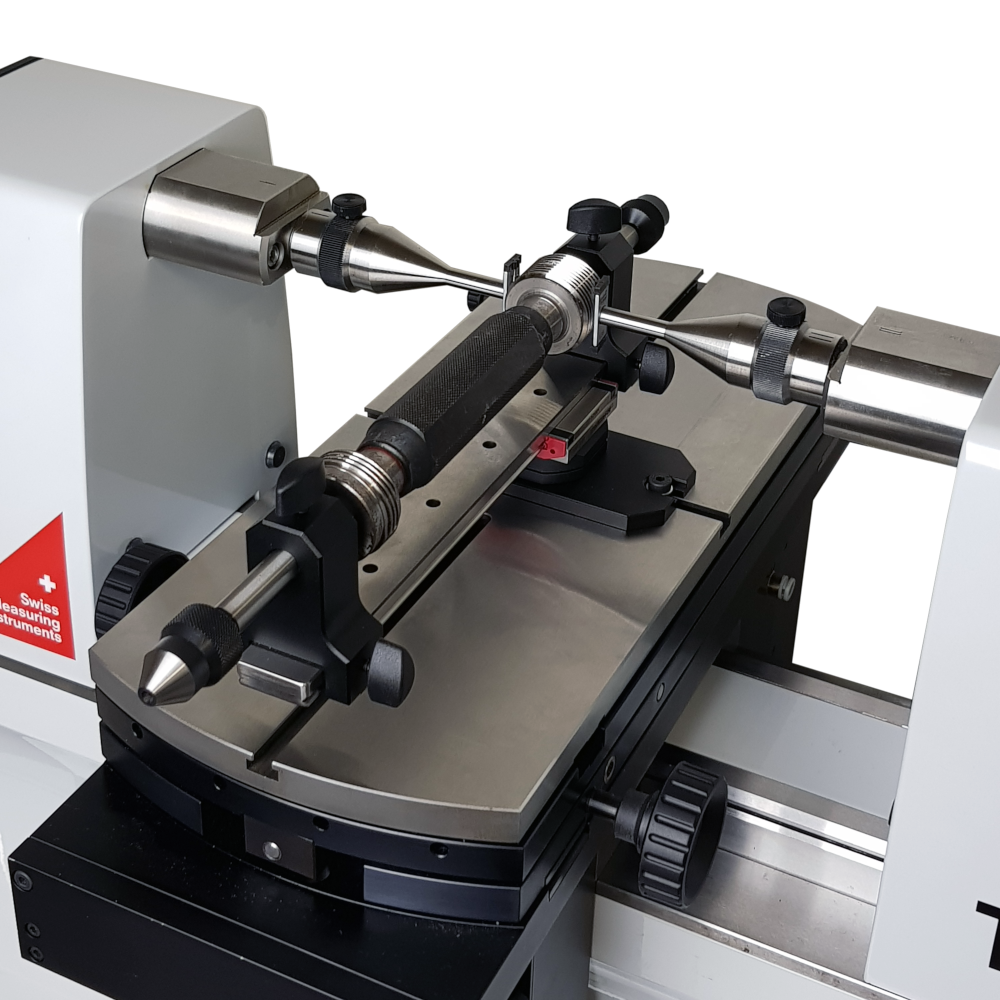

  • CNC controlled measurement even on diameters and threads

Technical details

Labconcept Nano3506001100
Application range *mm (in) 350 (13.2)600 (23.6)1100 (43.3)
Absolute measuring range*mm (in) 350 (13.2)
Max. permissible errors, BMPE 1) µm0.07 + L(mm)/2000
Repeatability, RMPE (2s) 1)µm0.03
Max. resolutionmm (in)0.000001 (0.0000001)
Measuring force (adjustable by software)N0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3)
Operational temperature°C+15 ÷ +35
Temperature of storage°C-10 ÷ +40
Relative humidity%20 ÷ 80
1) Values determined at a temperature of 20 ± 0.2 °C and a relative humidity of 50 ± 5 %.
2) With electronic sensor
3) Force display on the WinDHI software window only
* The measuring range depends on the anvils used.

Measuring table with motorized Y and Z axes
Z axis, displacement range 1)mm (in)80 (3)
Y axis, displacement range 1)mm (in)50 (2)
X axis, floating movementmm (in)± 10
Angle of inclination (Y)°± 1.5
Angle of rotation (Z)°± 4
Max. weight of partskg60
1) Both axes Y and Z have an integrated measuring system.
