Aberlink CMM – Measur3D

Accurate inspection right next to your machine tool

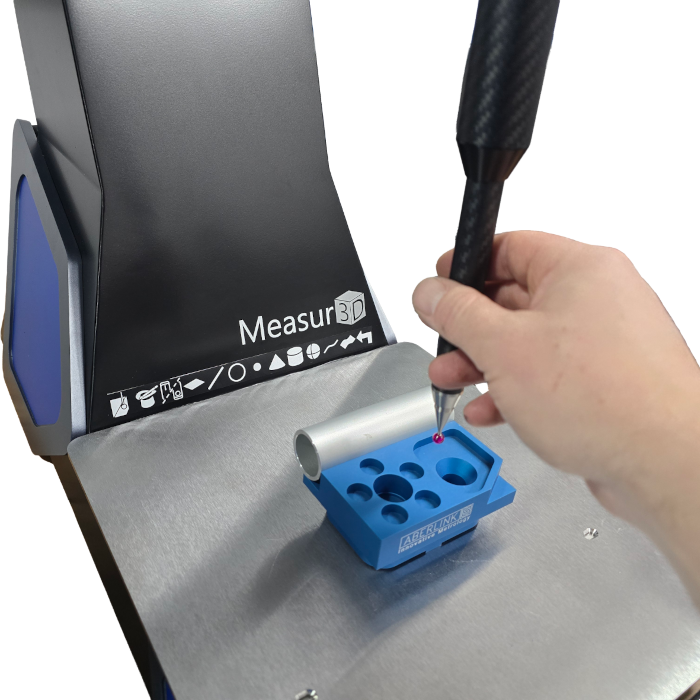

The Measur3D is a revolutionary manual CMM. Using three rotary axes, Aberlink has developed a compact and portable CMM that can be used exactly where it is needed, on the shop floor,
close to your machine tools.

The Measur3D is designed to optimise inspection as parts come off the machine tool, one operation at a time. It provides immediate feedback on the machining process, allowing manual tool offset
corrections before final inspection, helping to minimise scrap and rework costs.

Requiring only a single-phase electrical supply, with no need for compressed air, the Measur3D can be plugged in wherever it is needed. A simple user interface has been developed for Aberlink
measurement software, making the Measur3D even easier to operate while retaining its full functionality. Once the part has been manually measured using either ‘touch mode’ or ‘constant contact scanning mode’, critical features are automatically recognised and dimensions are displayed automatically. No other manual CMM can scan a part as quickly and easily as the Measur3D — it really is that simple.

The intuitive, easy-to-use software combined with the innovative mechanical design means that parts can be measured within minutes of switching on the Measur3D, even without previous CMM
experience. With a volumetric accuracy of 5 microns, achieved thanks to 40-nanometre resolution encoders, you can rely on the
inspection results. The extensive use of carbon fibre throughout the design also allows the machine to handle changes in air temperature
while maintaining excellent metrology performance. Compact, portable design ideal for shop-floor deployment

• Operates on standard 3A electrical power — no air supply required
• Durable manual CMM built for demanding workshop environments
• Features Aberlink’s intuitive, manual measurement software
• Learn to operate in just one day — no prior CMM experience needed
• Continuous scanning enables accurate size and form analysis
• Delivers sub-5 micron accuracy across the entire measuring volume
