Aberlink CMM – Azimuth

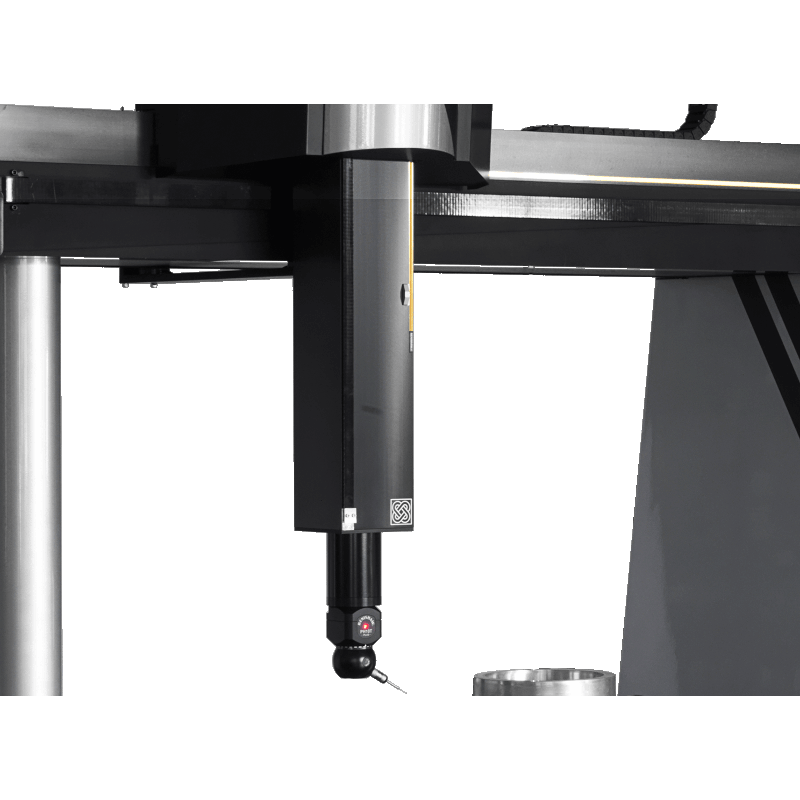

Sizeable Performance

The groundbreaking design of the Azimuth features aluminium honeycomb panels originally engineered for high-performance environments like Formula One and aerospace. This advanced material delivers an exceptional stiffness-to-weight ratio, giving the Azimuth superior speed and precision. Despite its substantial size, the Azimuth achieves impressive velocity without compromising on accuracy. Its drive mechanisms are built for both reliability and ease of use, and the innovative Y-axis solution maintains consistent performance across all machine sizes, up to 3 meters wide.

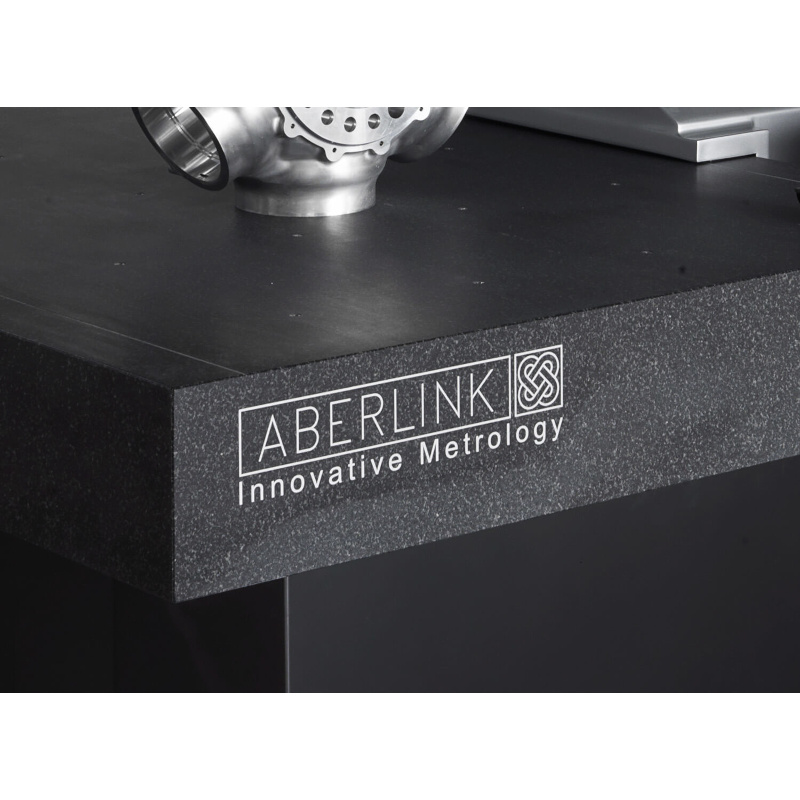

Fully Loaded

Large-scale machines must also be capable of handling the measurement of heavy components — an area where Aberlink has introduced a smart and efficient solution. Instead of resorting to a deeper, heavier, and more expensive granite base, we provide a purpose-built load plate that rests on the granite surface. This plate is engineered to support weights of up to six tonnes, transferring the load directly through the bench feet to the floor. As a result, metrology performance remains completely unaffected.

From strength to strength

Price request

Demo request

As CMMs increase in size, simply scaling up smaller designs isn’t enough — structural stiffness becomes vital, yet excess weight must be avoided. The Azimuth CMM is not only the largest in Aberlink’s portfolio, but also represents the result of over two decades of expertise in designing and manufacturing advanced metrology systems. It brings together cutting-edge materials and engineering innovation to deliver precision, performance, and durability on a large scale.

Includes Aberlink’s revolutionary, user-friendly measurement software
Industry-leading ease of use — learn in just one day, no CMM experience required
Handles components weighing up to 6000 kg with ease
Available Y-axis travel options from 2000 mm to 3000 mm
High-resolution 0.0001 mm linear encoders ensure exceptional accuracy
Fully integrated drive system delivers consistent performance across the full measurement volume
Supplied with a responsive CMM touchscreen joystick as standard
Free stylus change rack included with every motorised probe head upgrade
Case study

Related products

Aberlink CMM – Axiom Aberlink CMM – Halo Aberlink CMM – Fulcrum Aberlink CMM – Azimuth Aberlink CMM – Extol Aberlink CMM – Horizon Portable CMM – C4 What is a coordinate measuring machine Aberlink 3D software

Documentation

Technical specifications Videos

Technical details

Axis Travel (mm)	X 1200 Y 2000, 3000 Z 1000
Overall Size (mm)	X 1940 Y 3000, 4000 Z 3595
Motion	CNC
Structure	Bridge
Suitable for	Inspection Room / Production Environment
Drive Type	Belt
*Volumetric Accuracy	TP20 (2.9µm + L/250mm) TP200 (2.8µm + L/250mm) SP25M (2.6µm + L/250mm)
Scale Resolution	0.1µm
**Optimum Temp Range	18 – 22°C
Operational Temp Range	5 – 45°C
Table Construction	Solid Granite
Table Load Capacity	1500kg
Max. Velocity Vector	600mm/sec
Max. Acceleration Vector	600mm/sec²
Air Required	Yes
Air Consumption	100 l/min (3.53 cfm)
Required Air Pressure	7 bar (100 psi)
Aberlink Camera Support	Yes

*Maximum Permissible Error MPE_E within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
